Tongue and Groove (T&G) Plank System

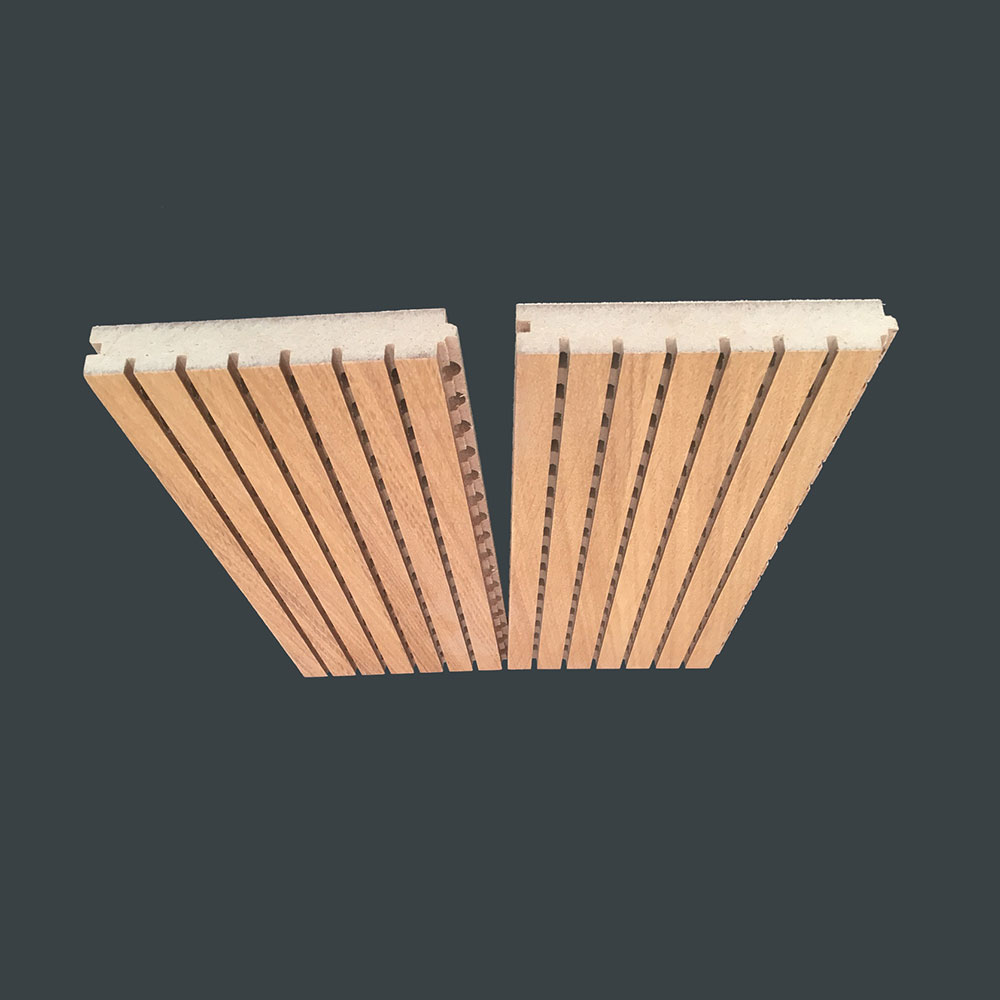

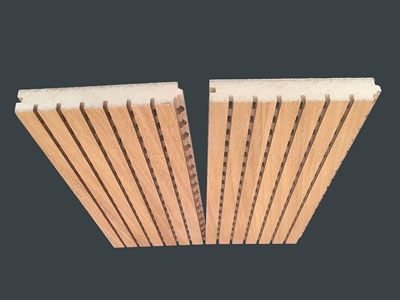

This system is used in Perfoplank acoustic panels which has grooves and back holes. The carrier systems needed for the mounting infrastructure of the panels are recommended by our engineers considering the characteristics of your places.
There are two production options as 12.8 cm or 19.2 cm widths. The reason for the use of narrow dimensions on the ceiling allows the panels not to be paunchy or corrugated defects to be minimized in these applications.

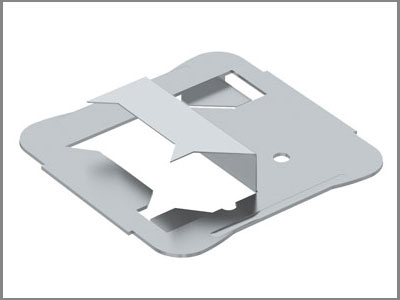

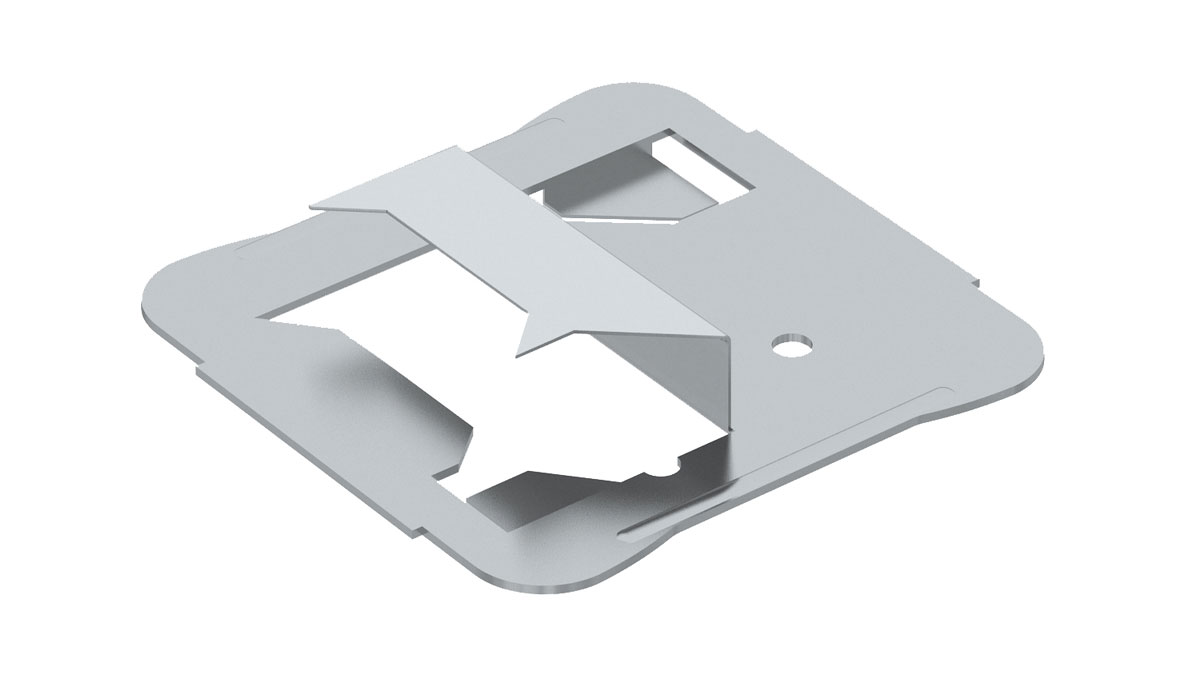

It is very suitable for pool island ceiling systems or canopy ceiling applications. For the regional ceiling coverings, production can be made according to your measurements. Thanks to its lightweight and easy installation, the system consisting of narrow parts can be applied very practically in ceiling installations. There are two types of installation options, nailed and clip-on.
Fire-resistant ceiling coverings can also be produced from B Class MDF upon your requests.

Panel Sizes: 128mm x 2780mm – 128mm x 3640mm – 192mm x 2780mm – 192mm x 3640mm

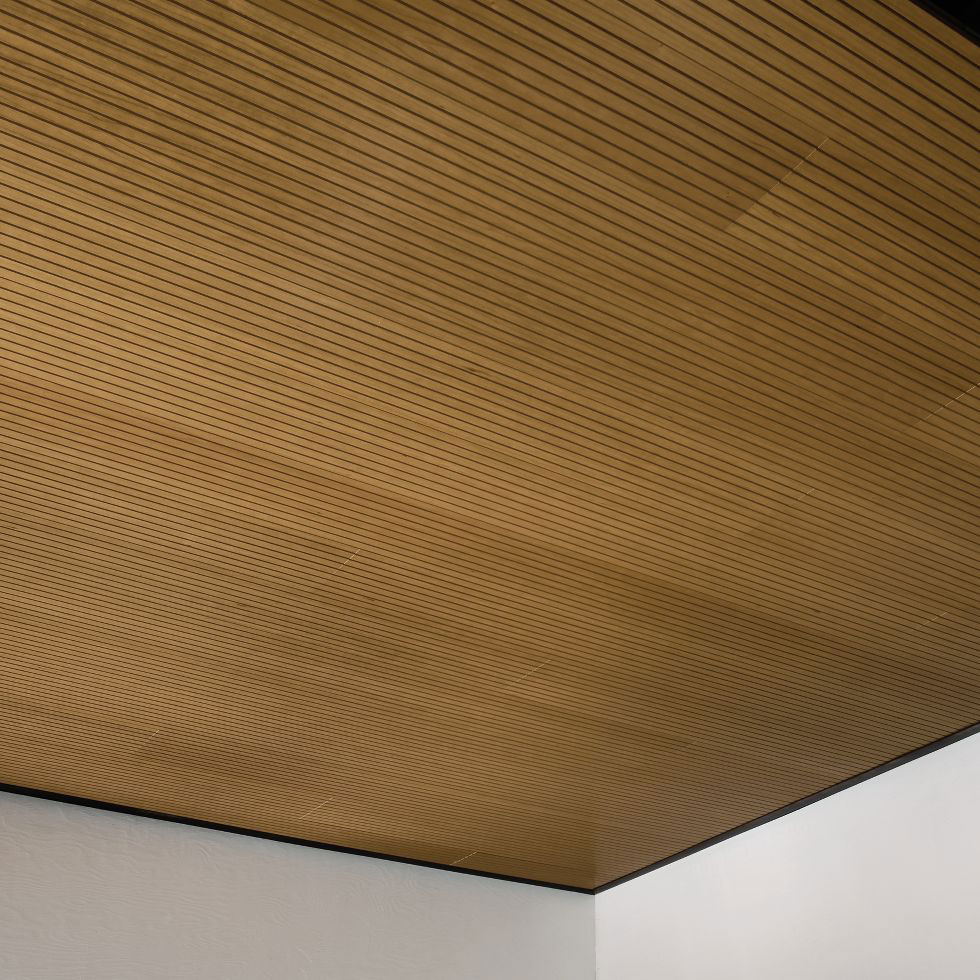

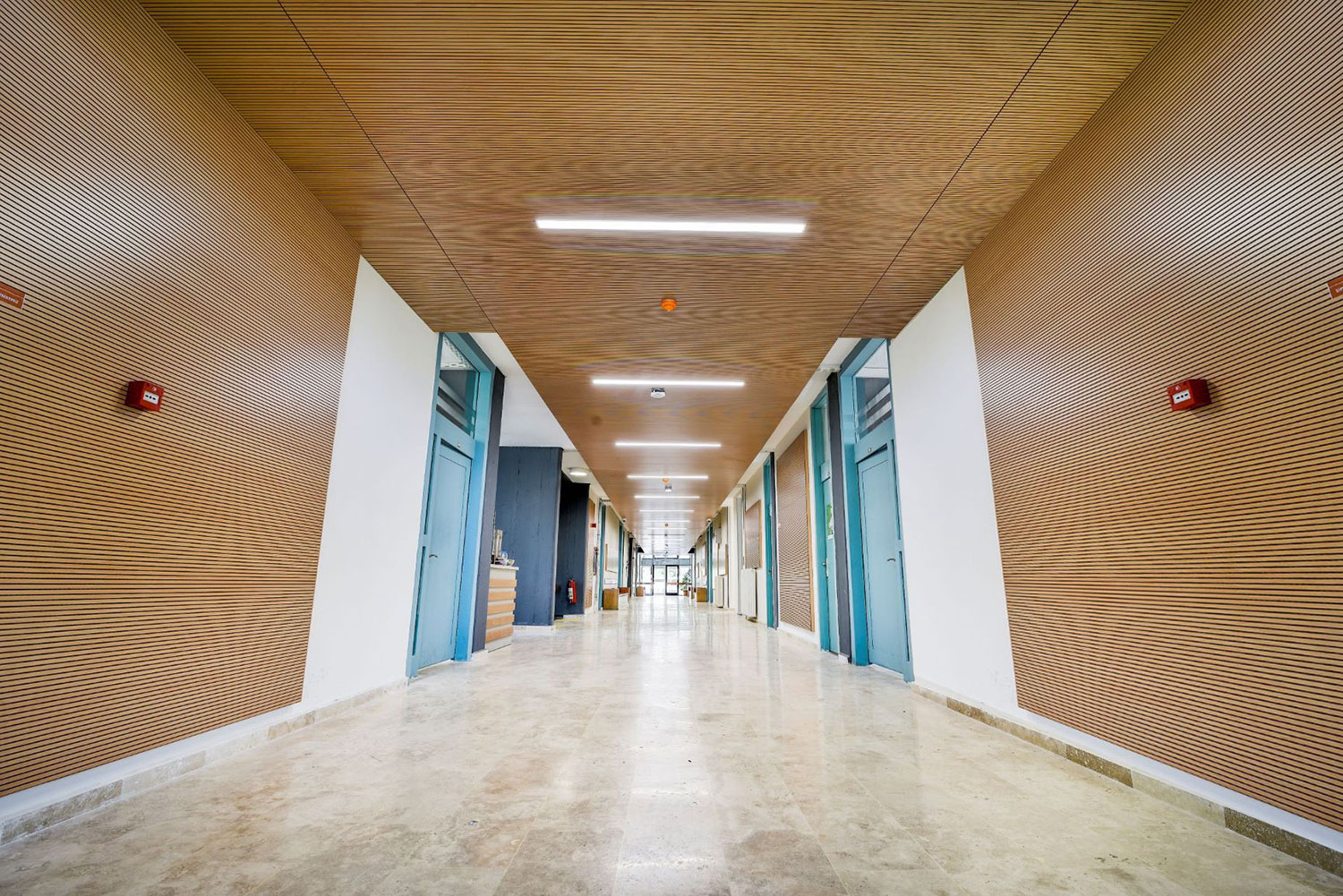

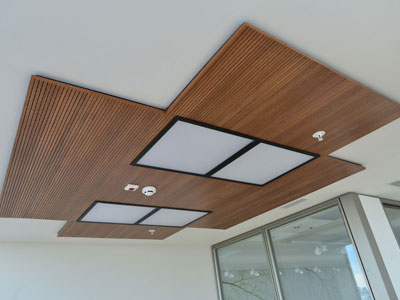

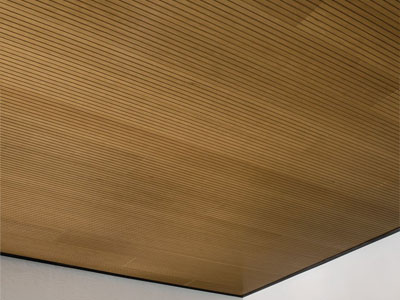

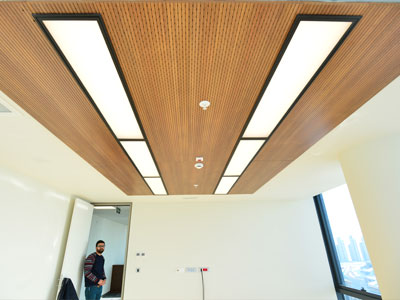

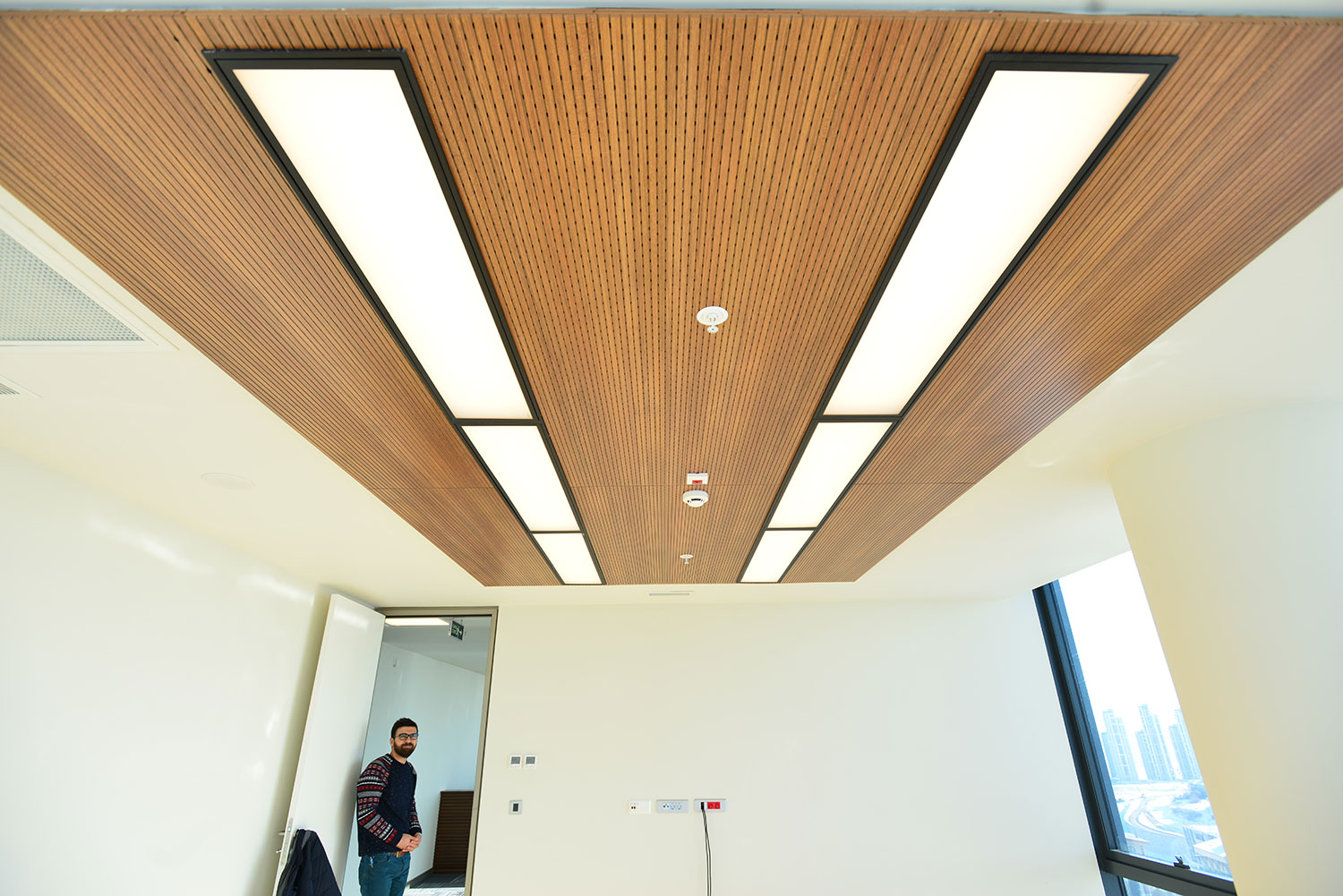

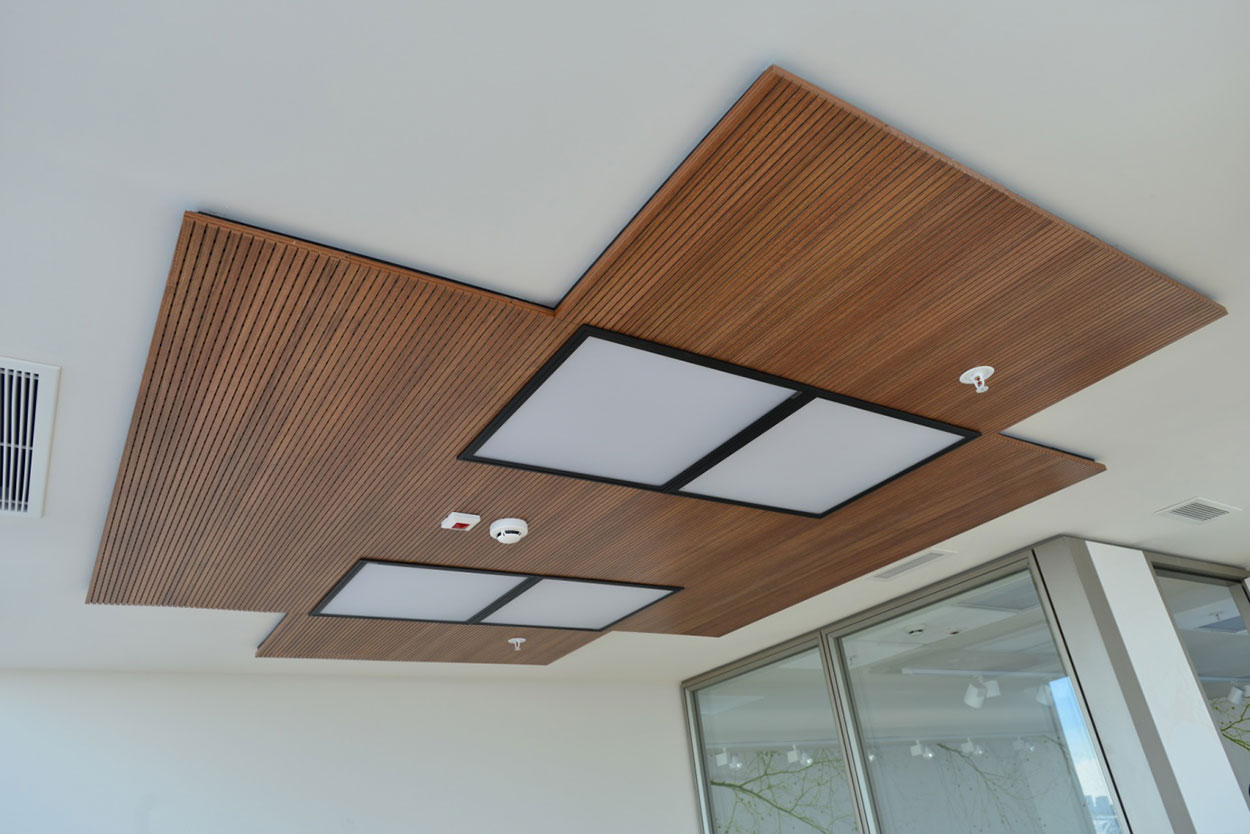

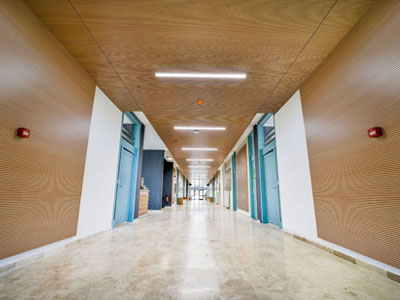

Application Examples

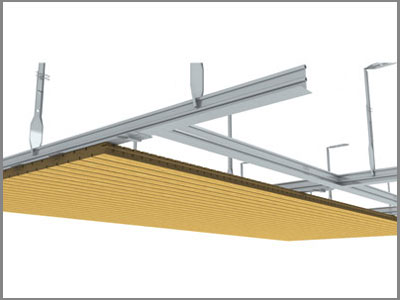

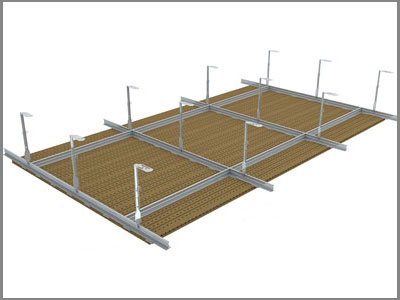

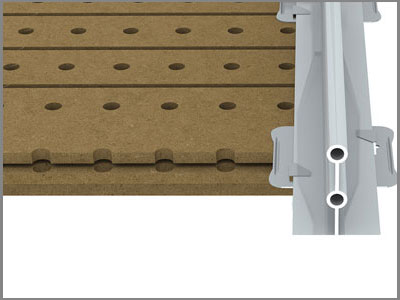

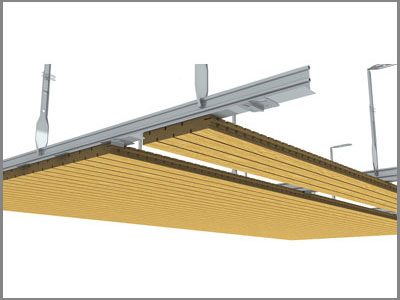

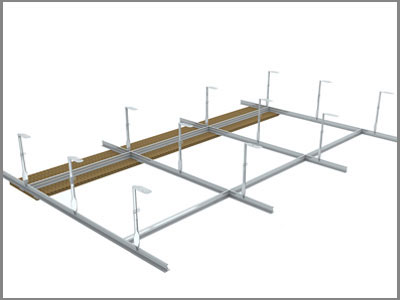

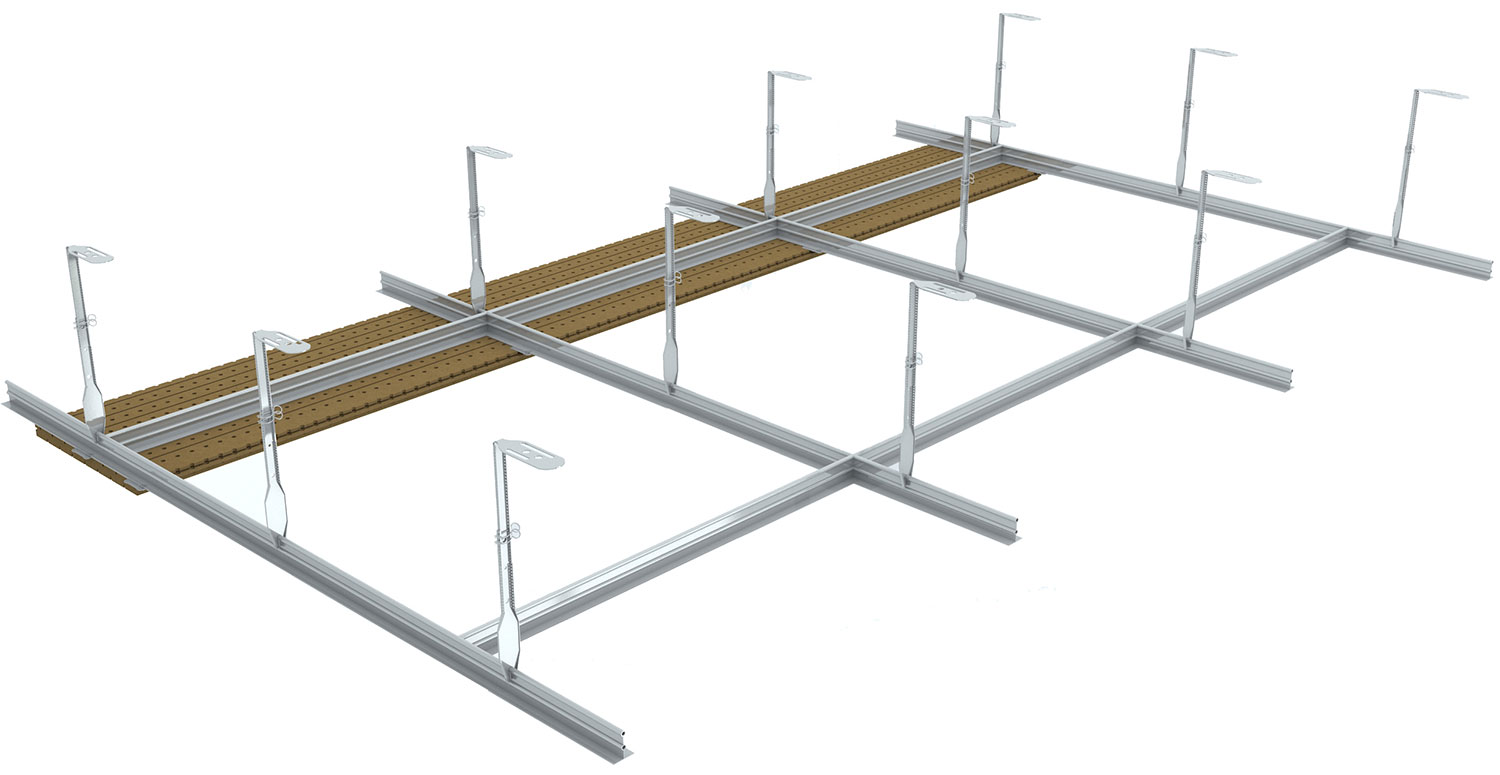

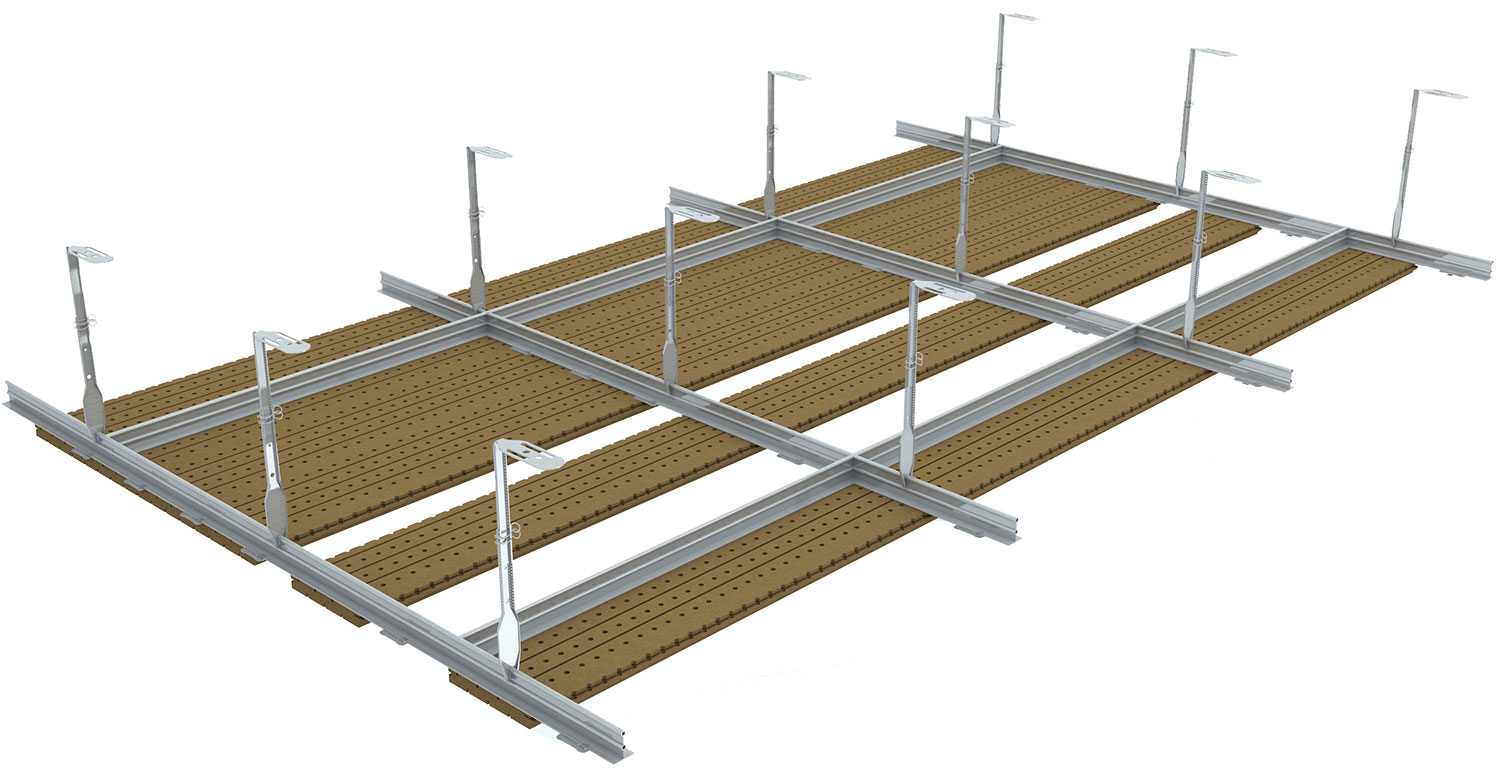

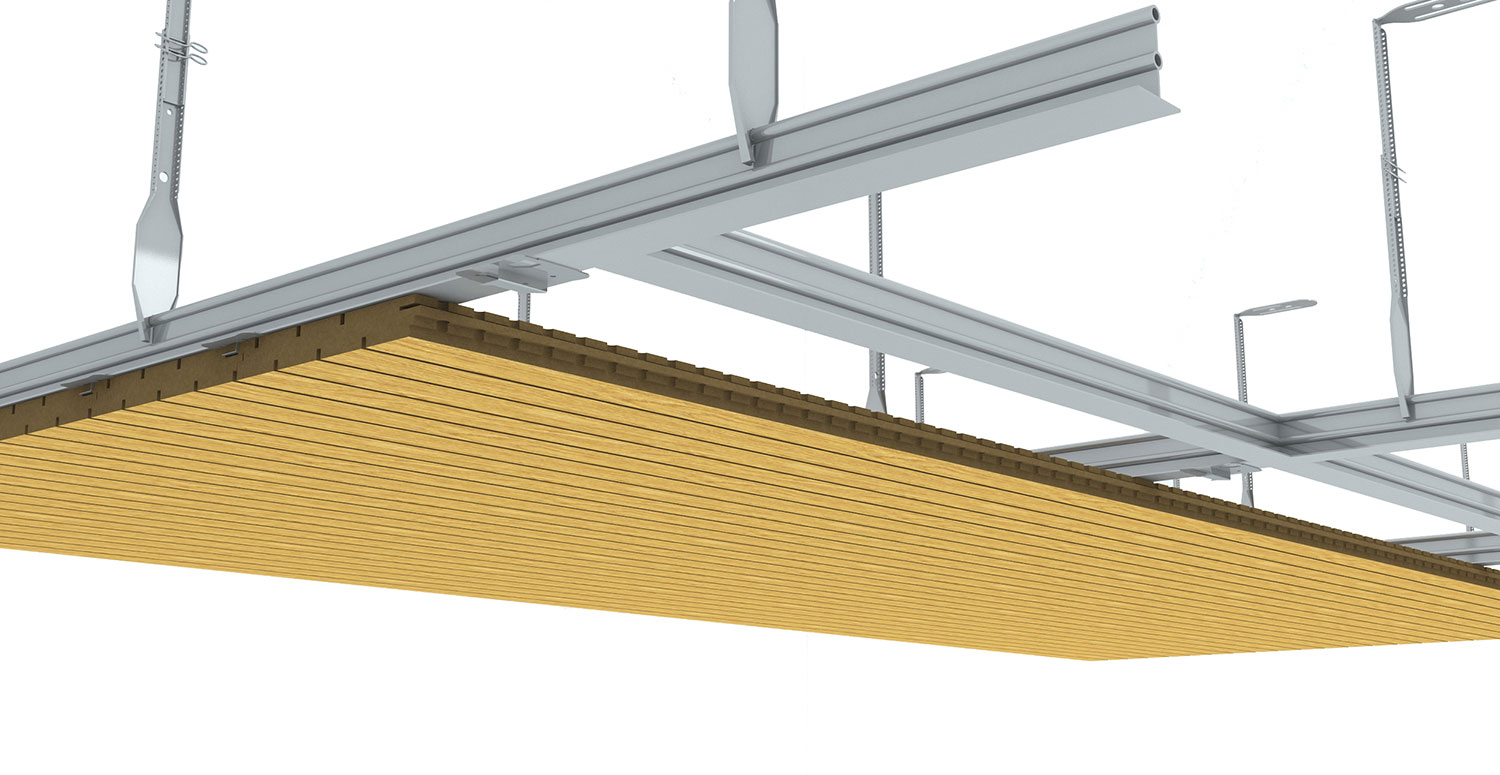

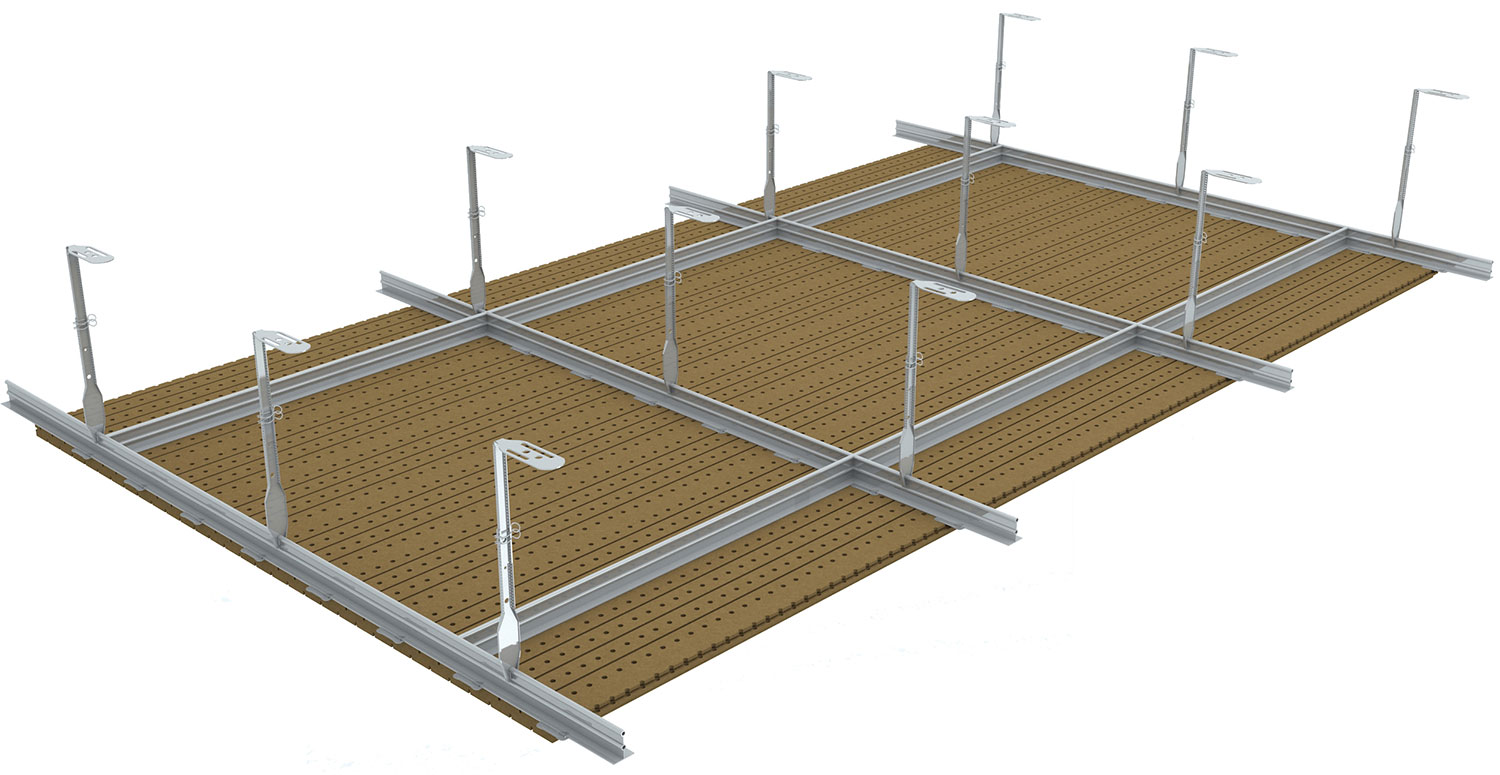

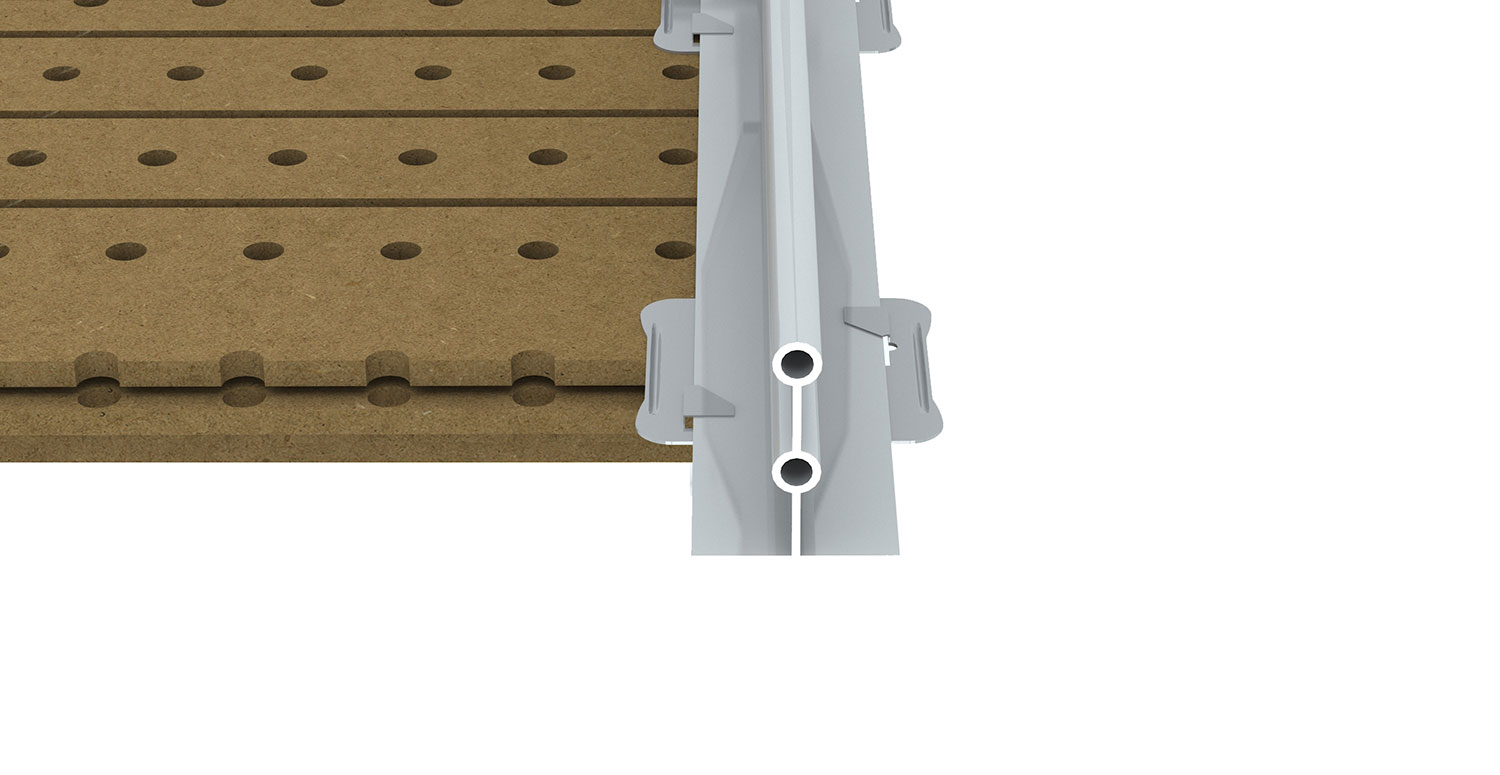

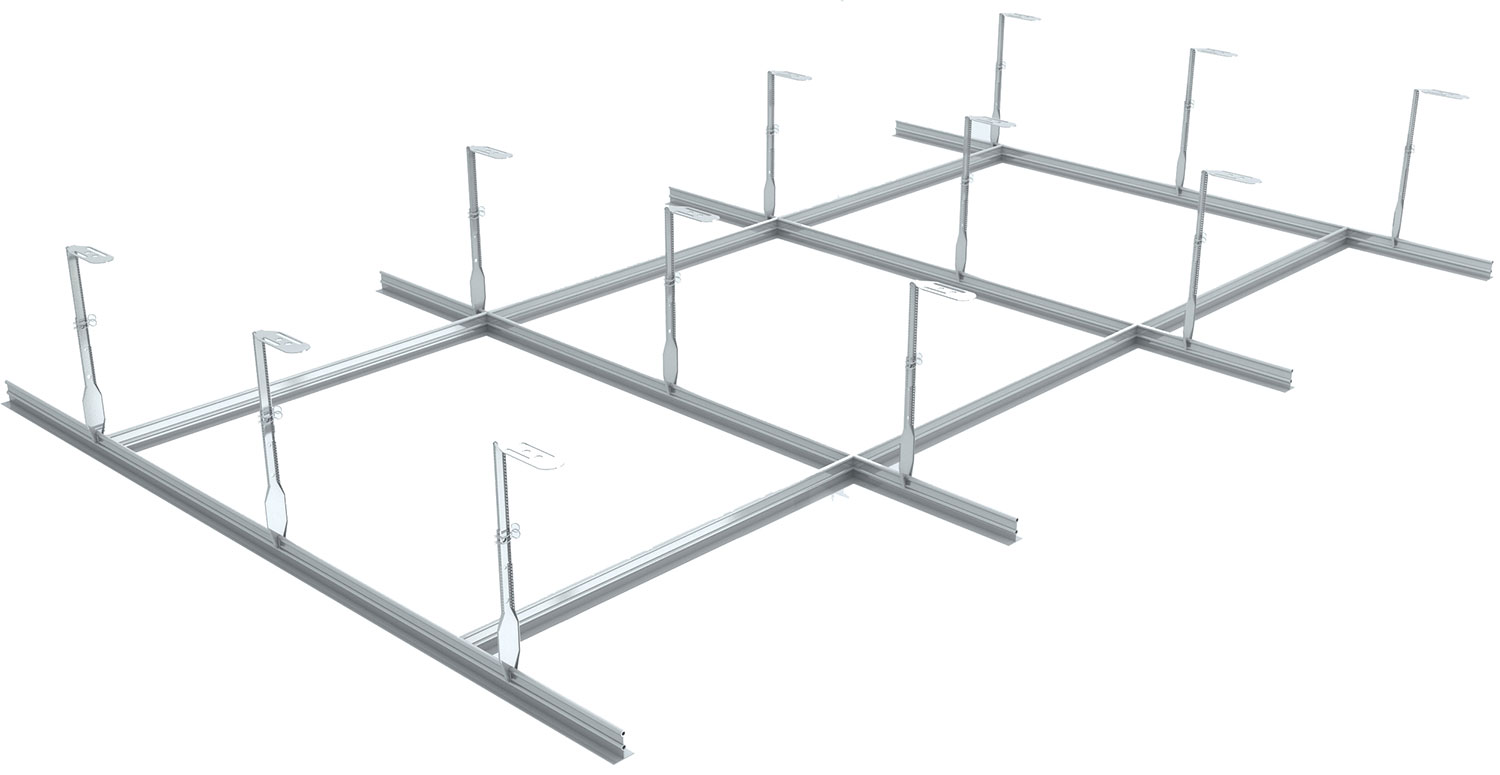

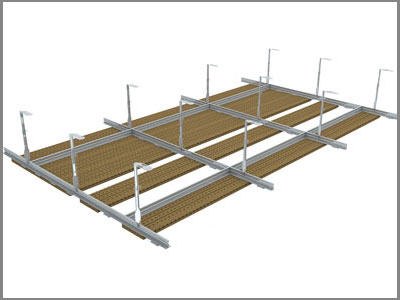

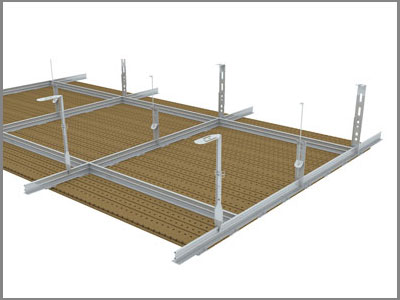

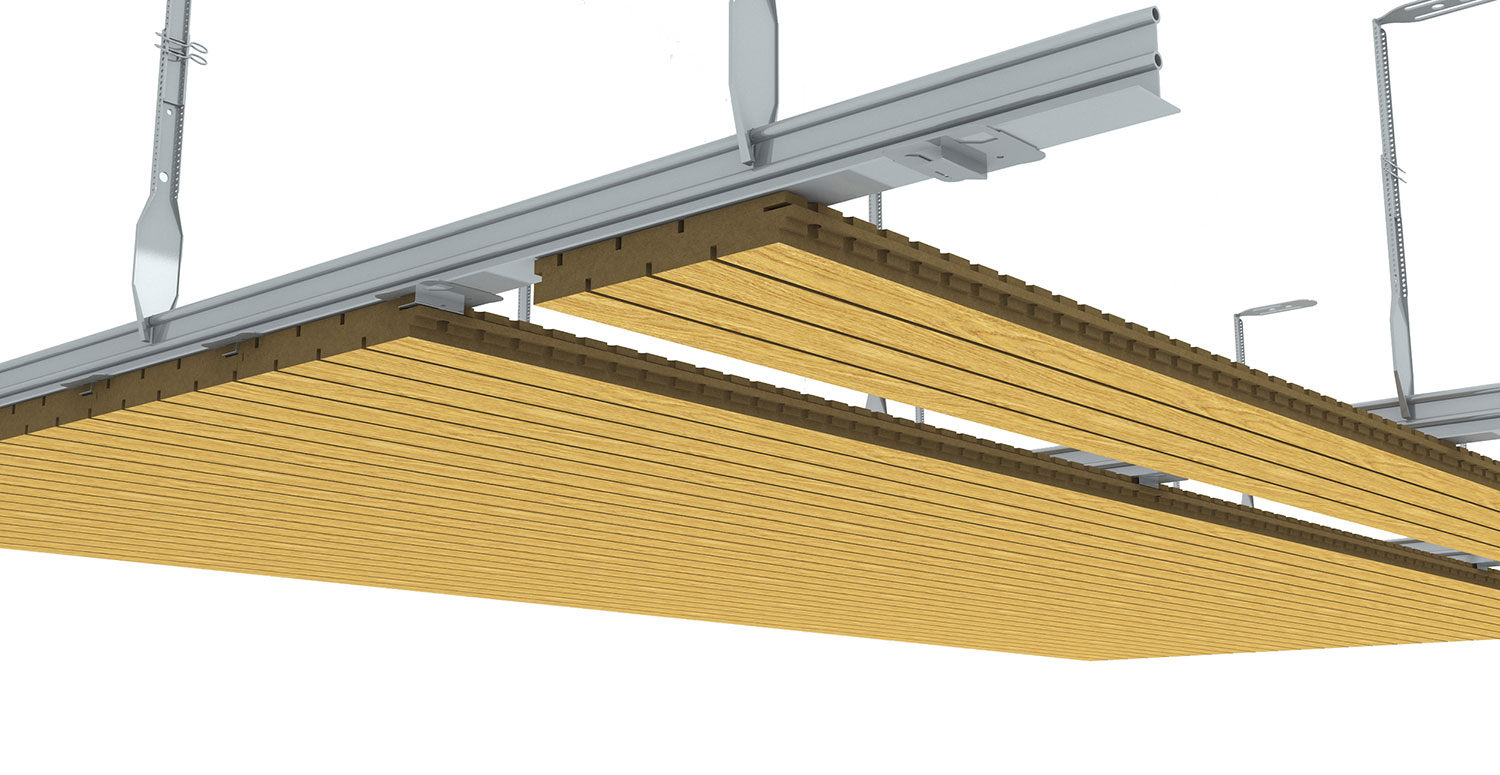

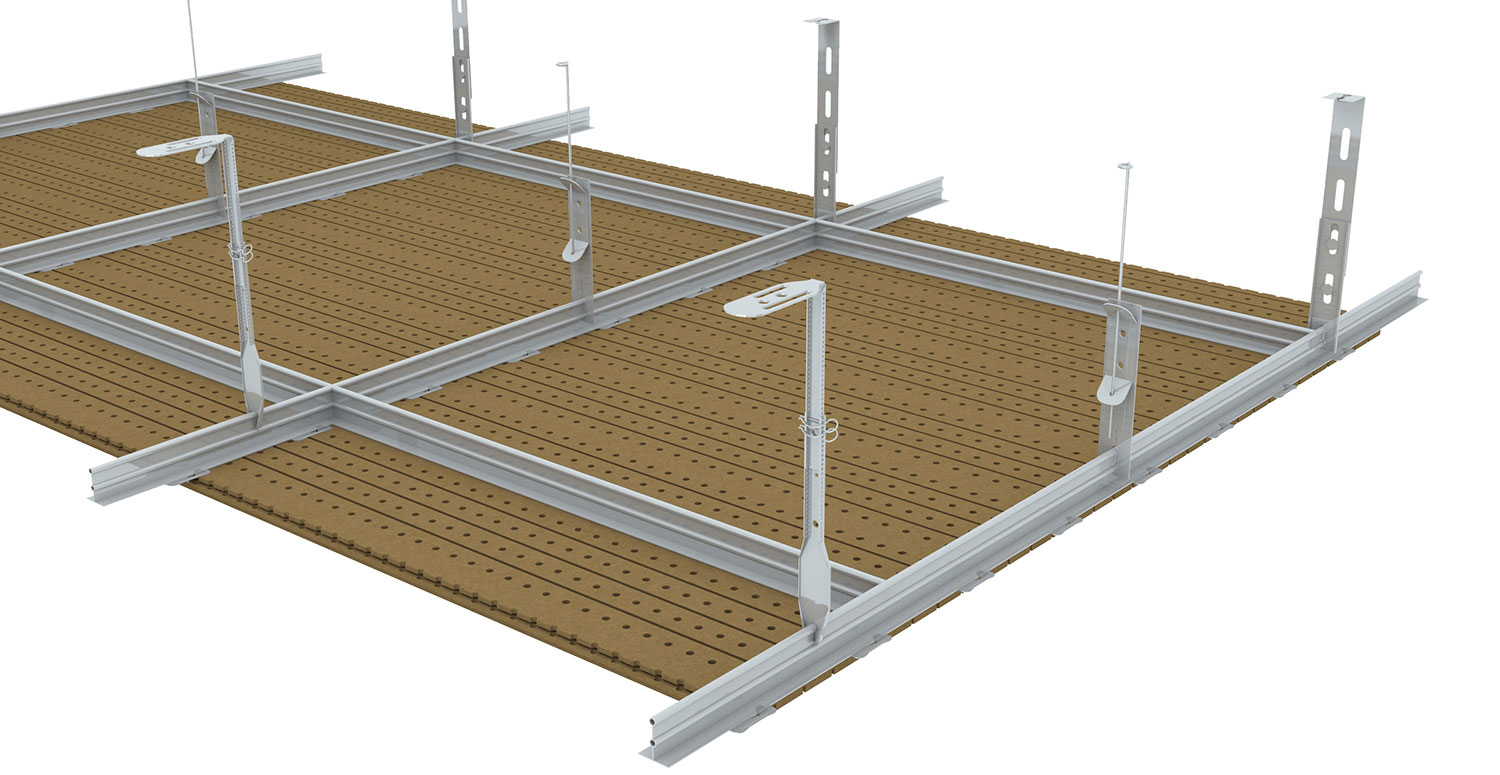

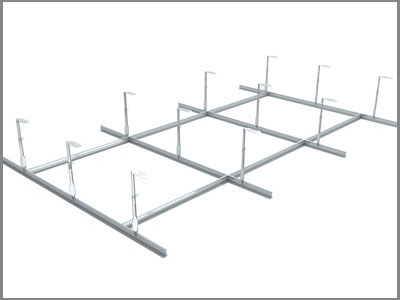

Mounting System
