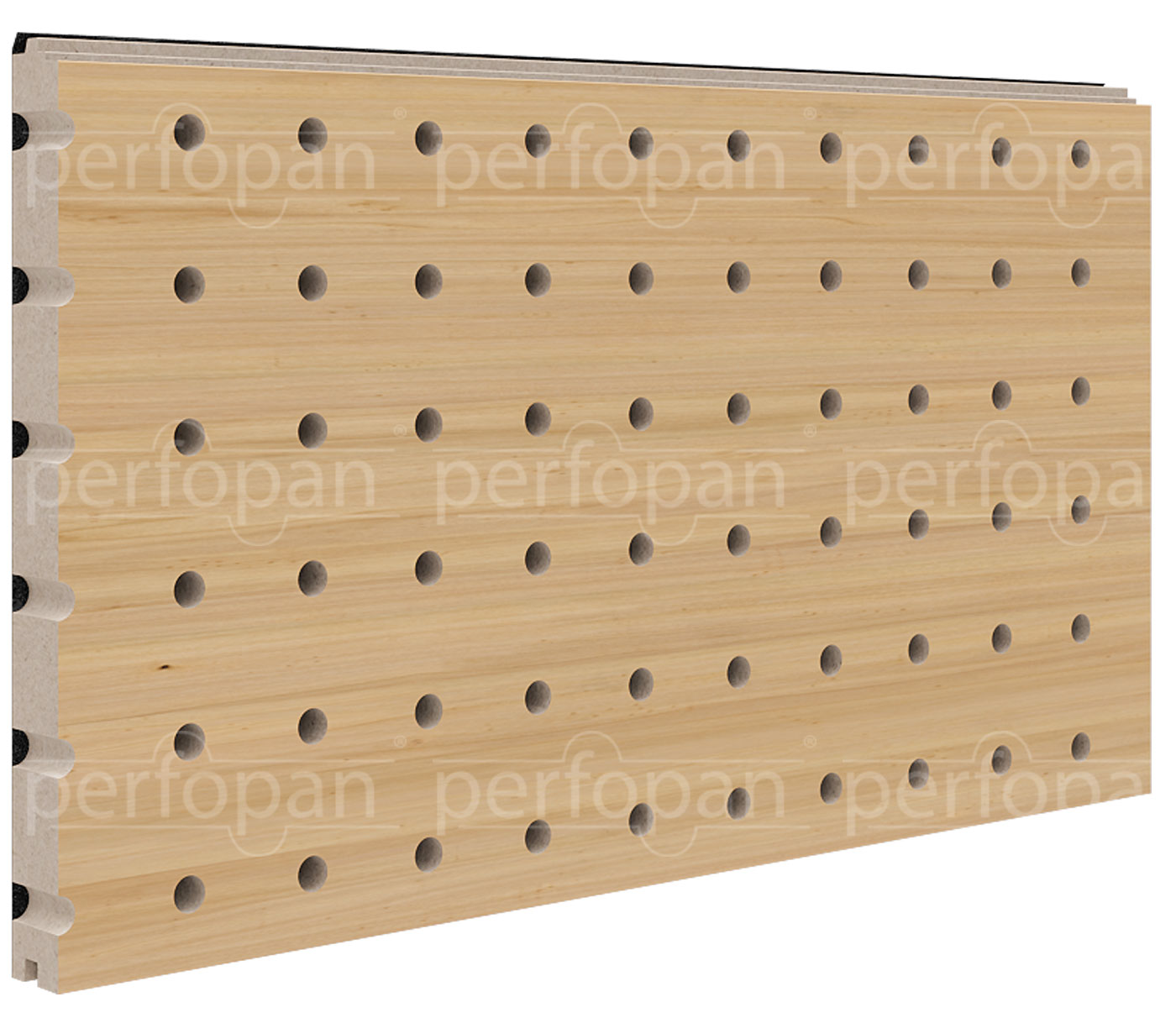

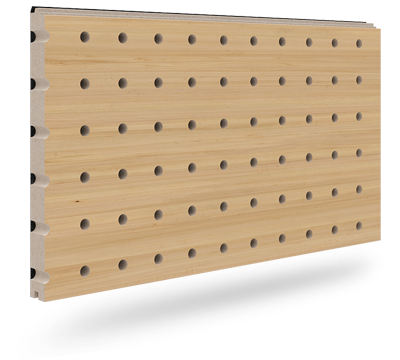

TD 32X32X8 PR%5 DS1000

This panel is drilled at intervals of 32mm, and there are 1000 full holes per square meter with a diameter of 8mm.
Perforation Ratio : %5
Frequency Type : It provides high acoustic absorption in low and medium frequency sounds.

Product Details Technical Data

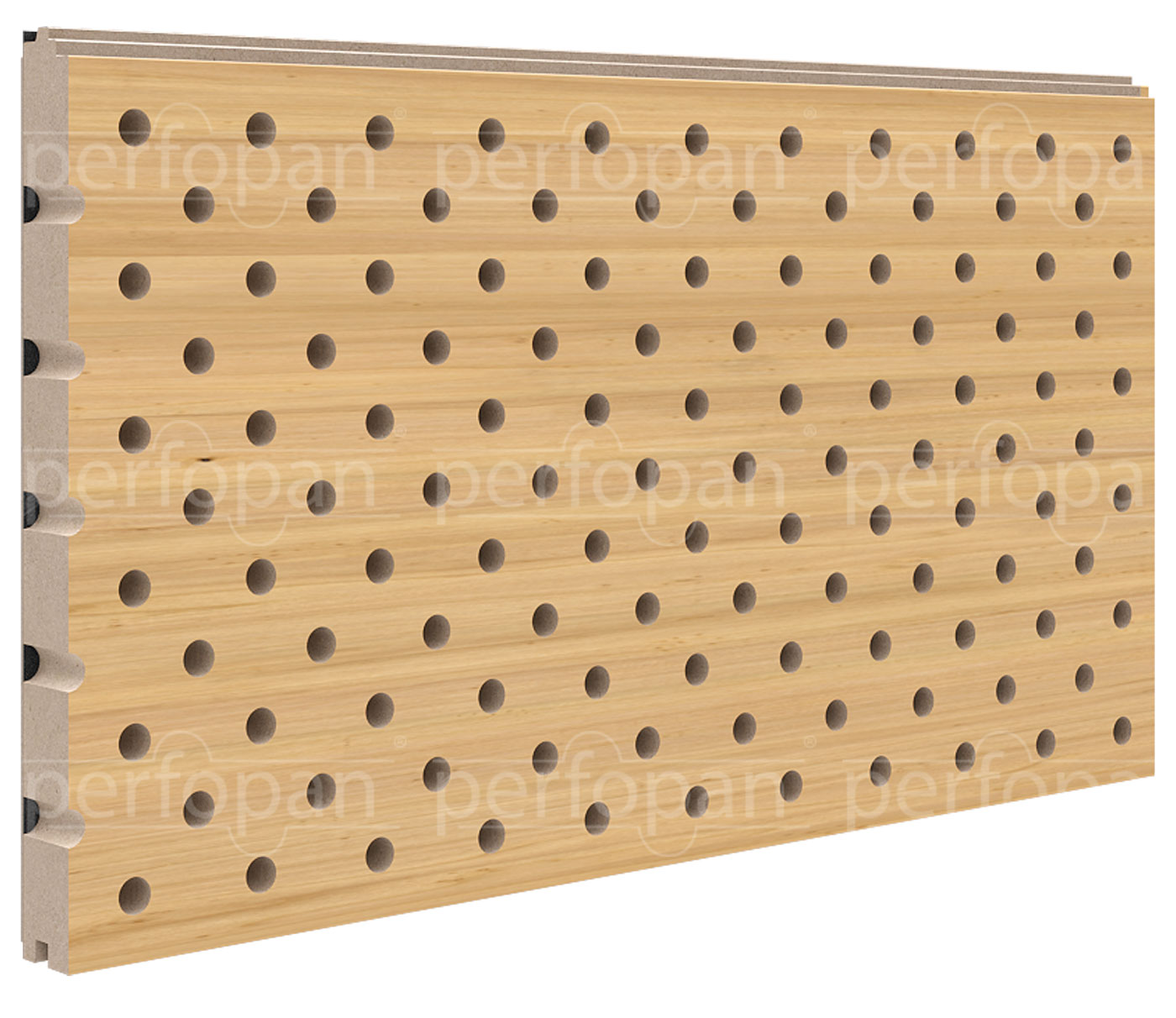

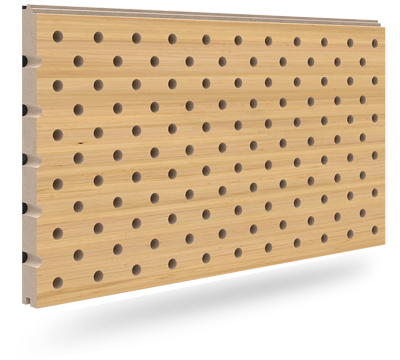

TD 32X32X8 PR %10 DS 2000

In this panel, there are 2000 full holes per square meter with a diameter of 8mm, which are cross-drilled at 32mm x 16mm intervals.
Perforation Ratio : %10
Frequency Type : It provides high acoustic absorption in low and medium frequency sounds.

Product Details Technical Data

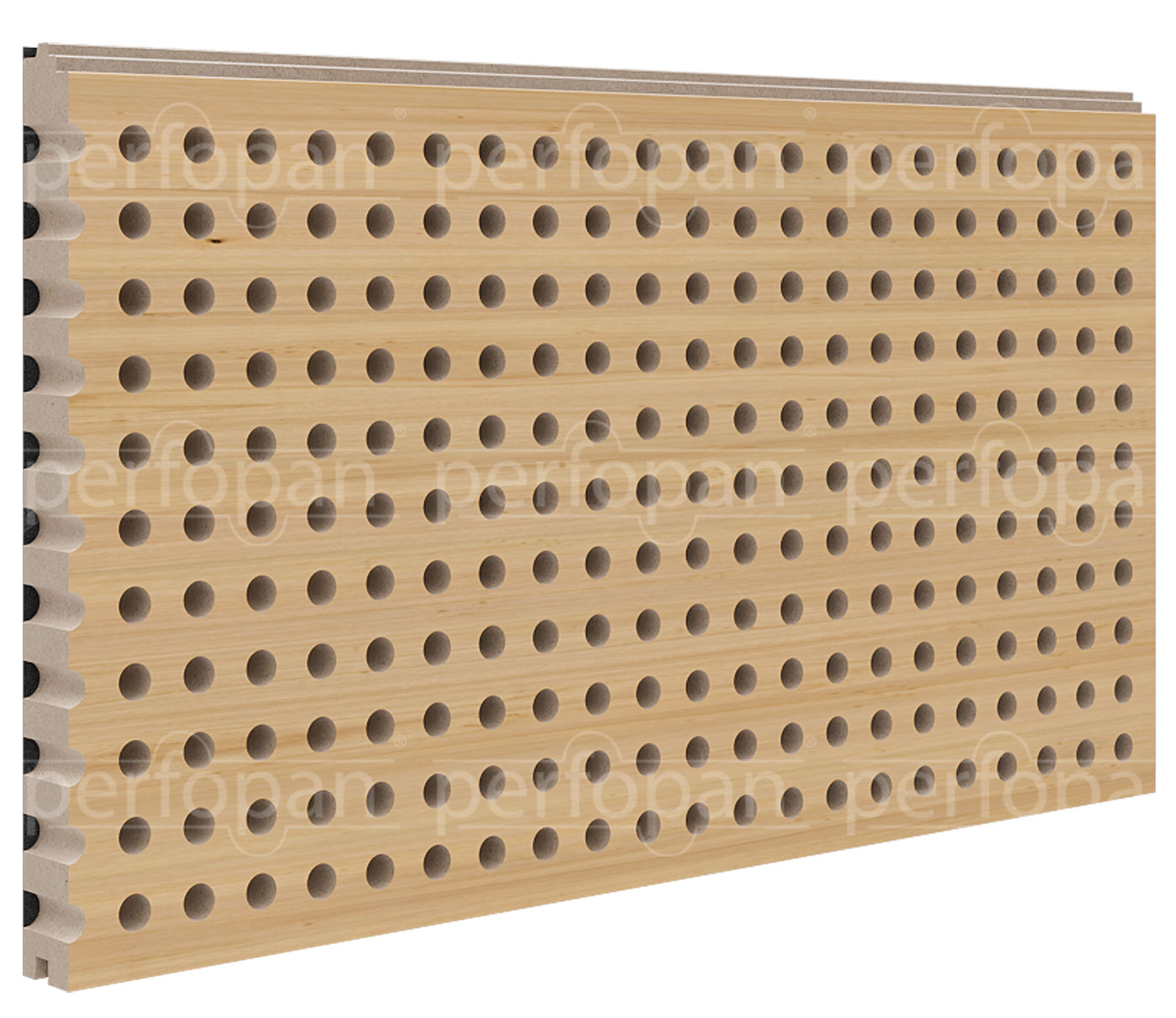

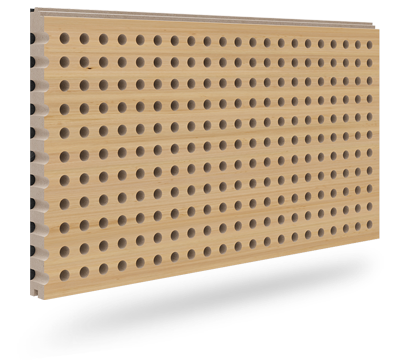

TD 16X16X8 PR%20 DS 4000

This panel is drilled at intervals of 16mm x 16mm, and there are 4000 full holes per square meter with a diameter of 8mm.
Perforation Ratio : %20
Frequency Type: It provides high acoustic absorption in medium and high frequency sounds.

Product Details Technical Data

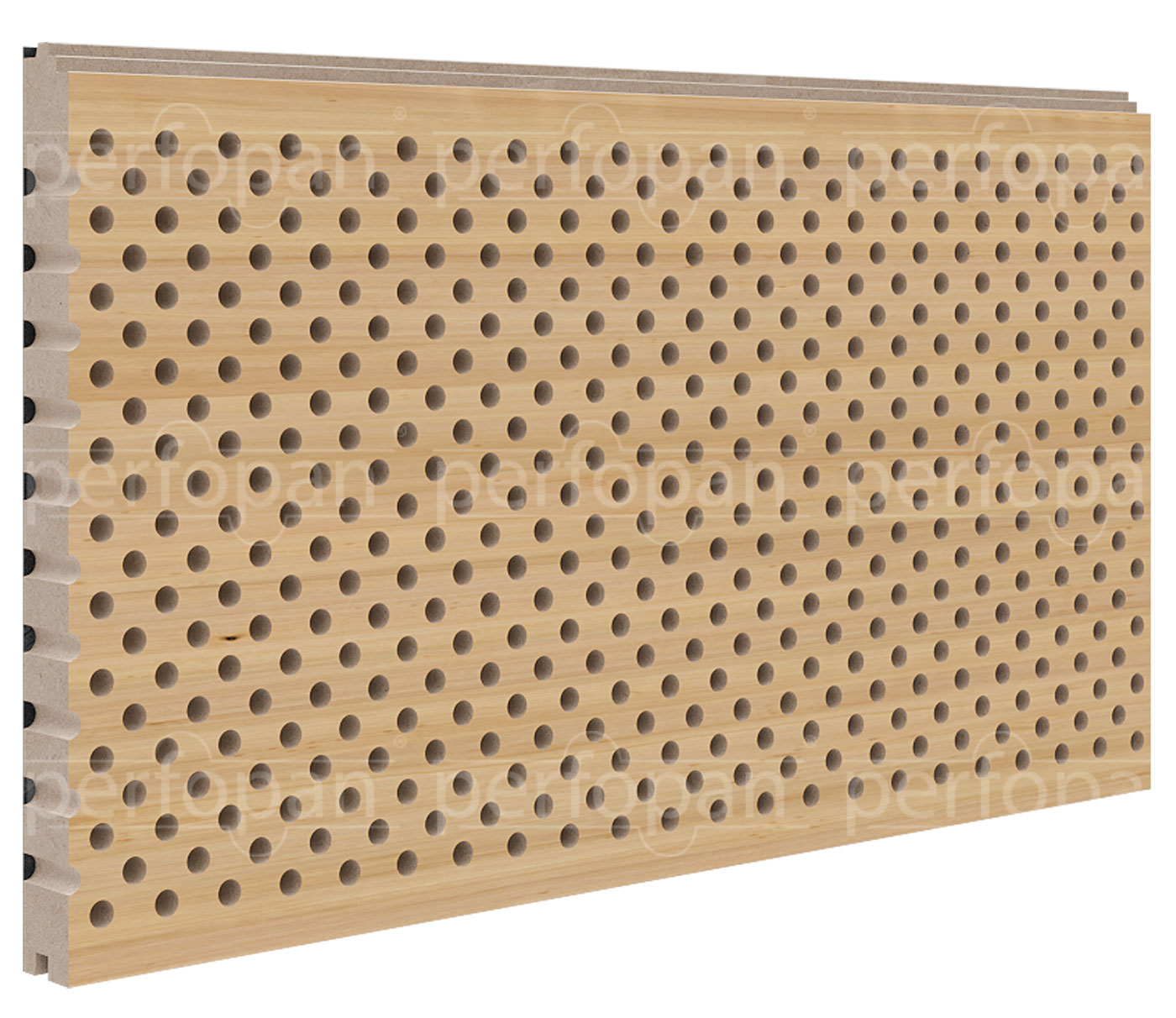

TD 16X16X8 PR%23 DS 8000

In this panel, there are 8000 full holes per square meter with a diameter of 8mm, which are cross-drilled at 16mm x 8mm intervals.
Perforation Ratio : %23
Frequency Type : It provides high acoustic absorption in medium and high frequency sounds.

Product Details Technical Data

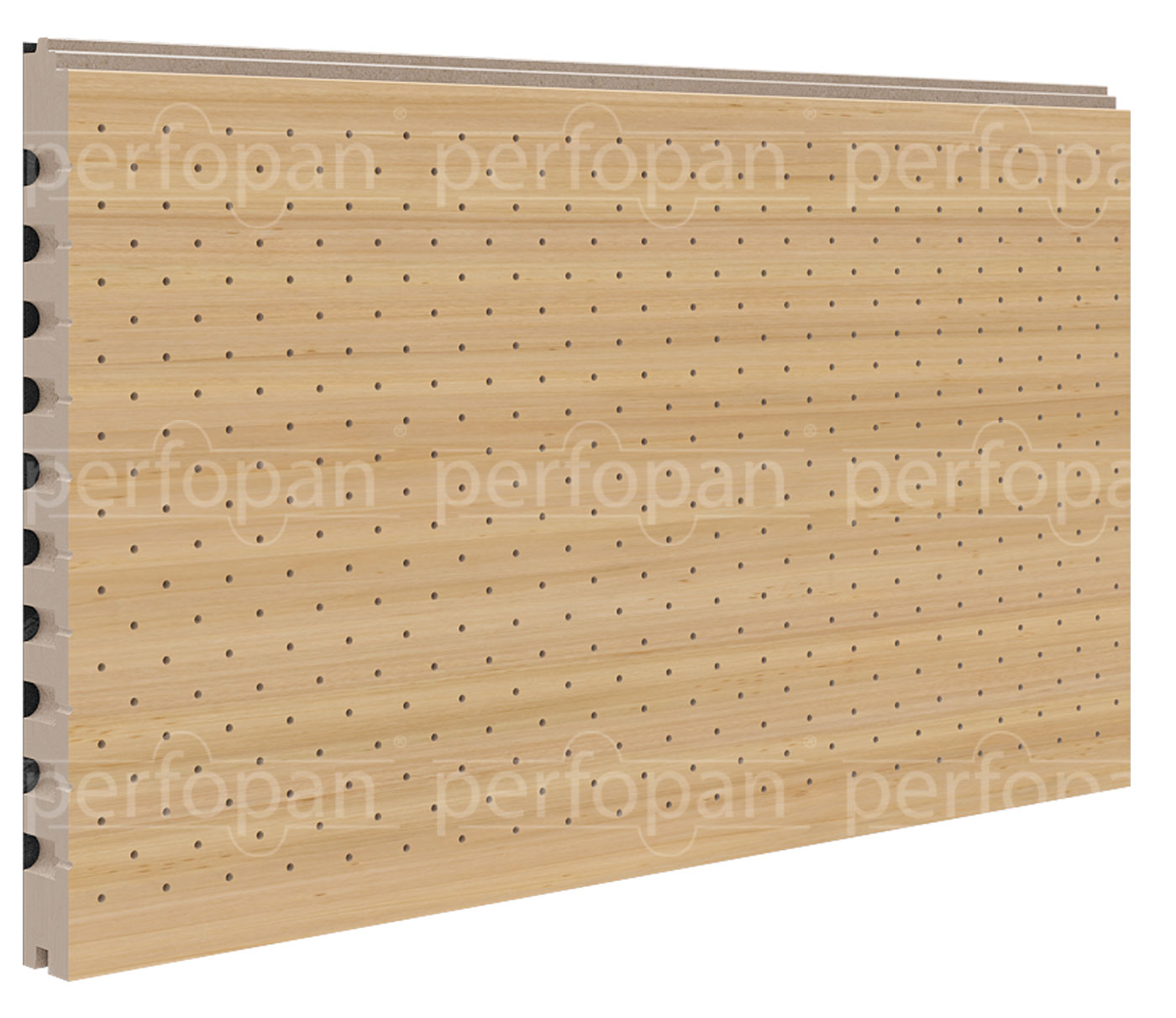

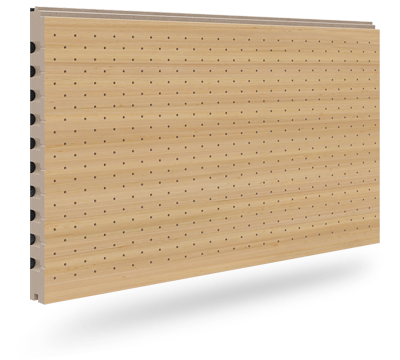

KD-16x16x2/8 DS16000

There are a total of 16,000 holes / m2 gradually opened, with Ø 2 mm on the front and Ø 8 mm on the back of our panel, where cross holes are opened at 16 mm x 8 mm intervals.
Perforation Ratio: %3
Frequency Type: It provides high acoustic absorption in low frequency sounds.

Product Details Technical Data
