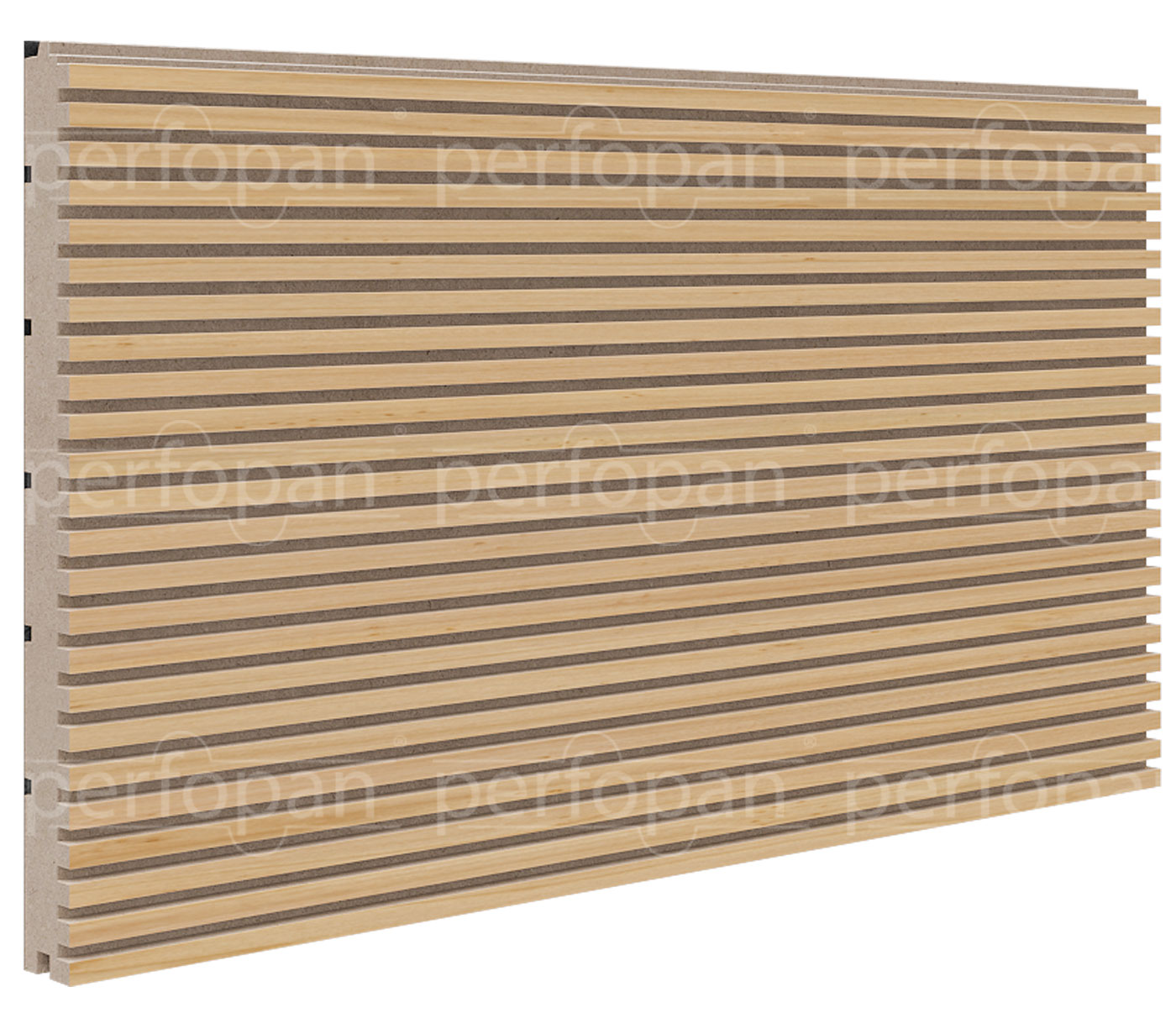

In this panel, the groove thickness is 3.2mm, and the width between the grooves are 5mm. The groove depth is 5mm, but the depth can be adjusted according to the needs of acoustic calculations. No operation is done on the back surface of the panel.
Product Details Technical Data

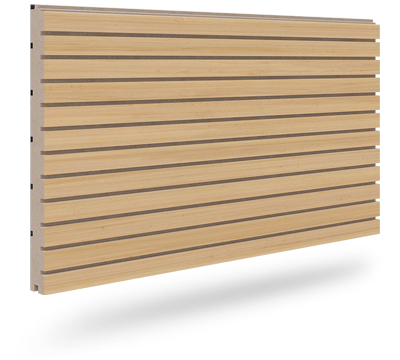

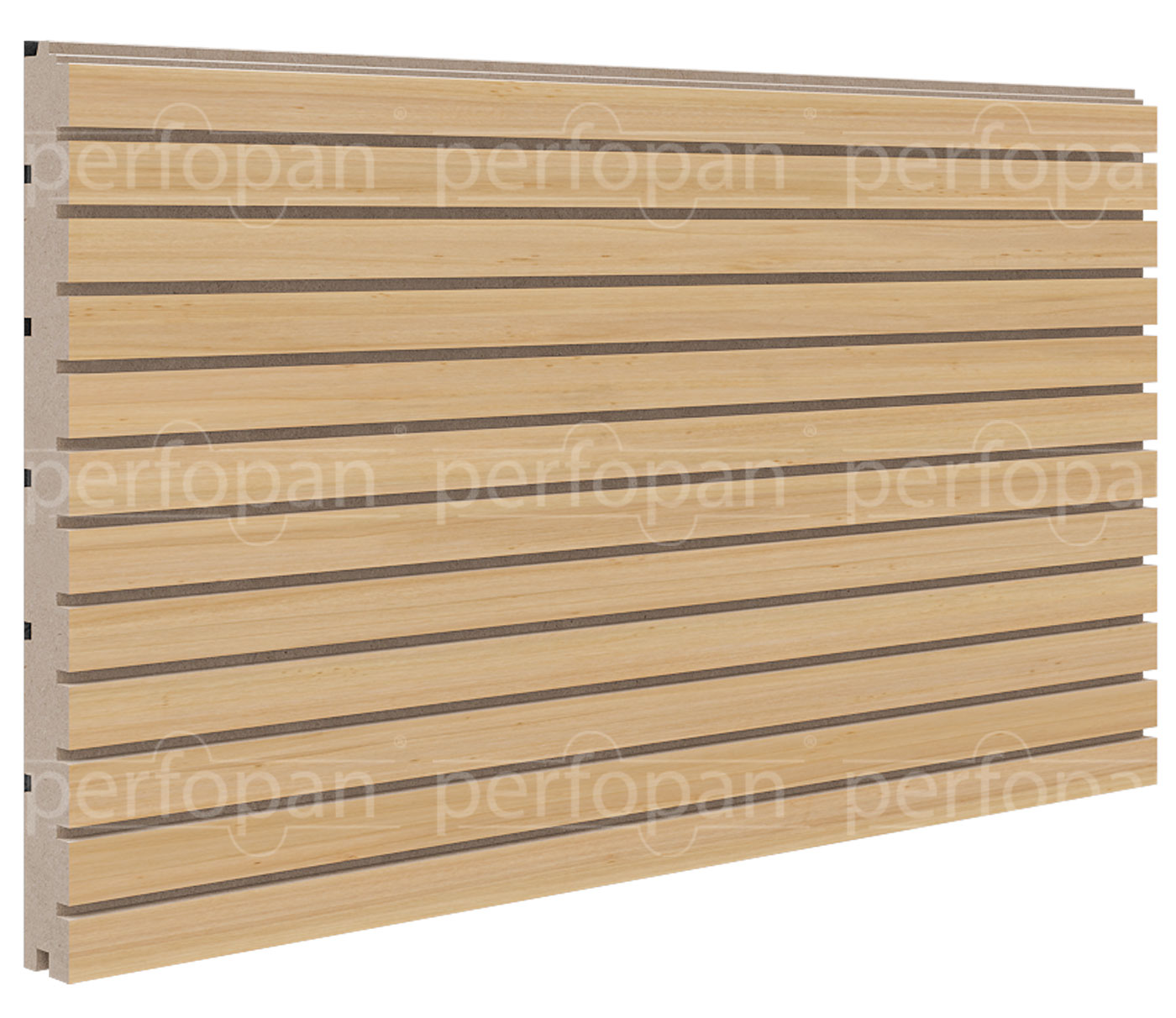

In this panel, the groove thickness is 3.2mm, and the width between the grooves are 13mm. The groove depth is 5mm, but the depth can be adjusted according to the needs of acoustic calculations.
No operation is done on the back surface of the panel.

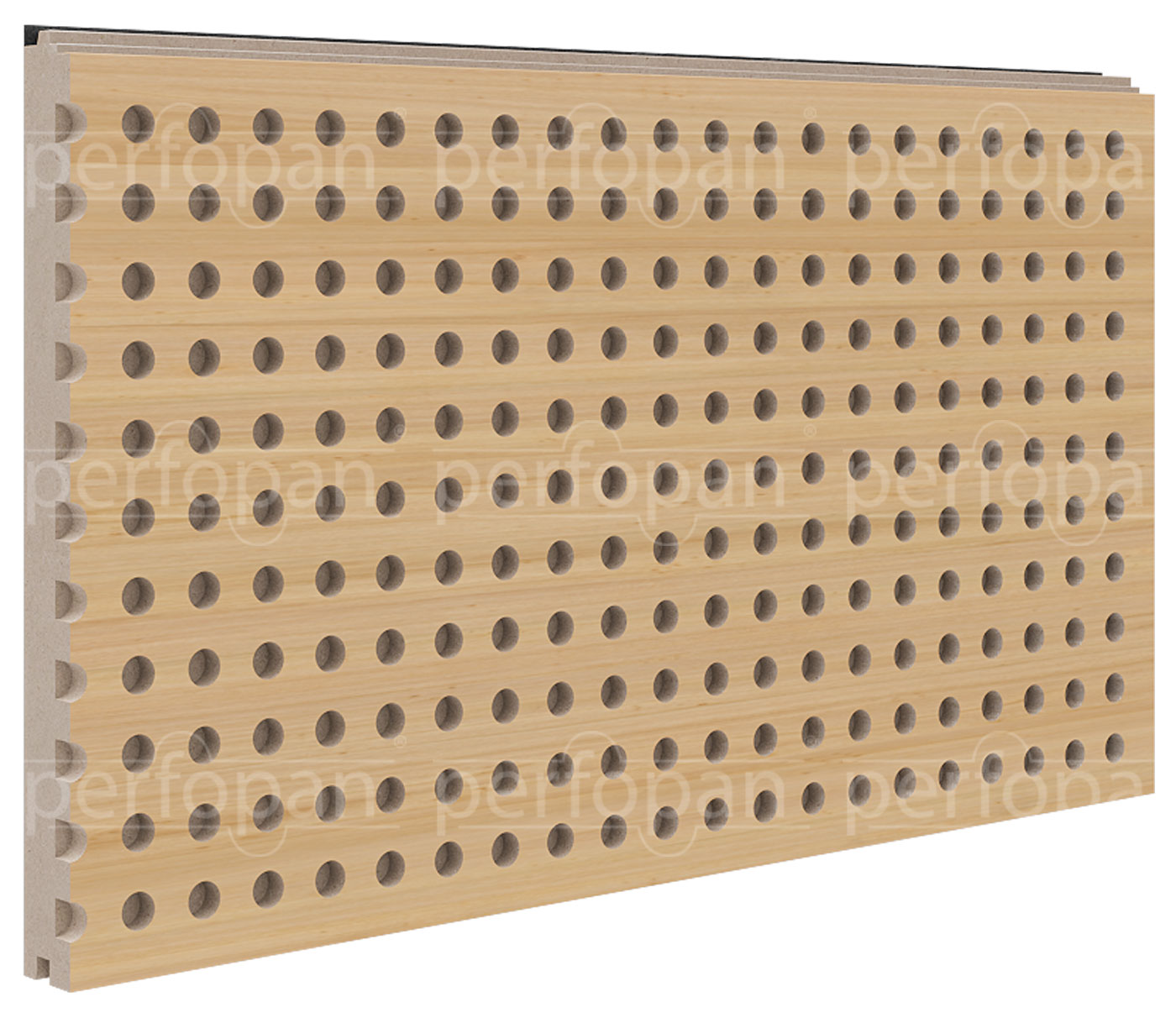

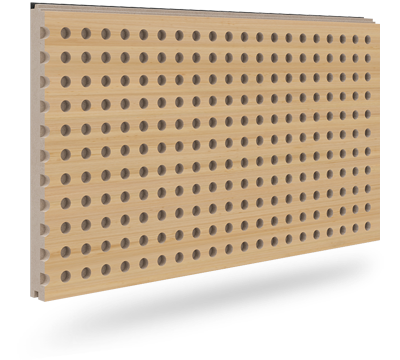

The distance between the holes in this panel is 16mm. The hole depth is 5mm, and the depth can be adjusted as required by acoustic calculations. No operation is done on the back surface of the panel. The distance between holes can also be 8mm, 16mm, 32mm, and 64mm.
Hole Diameters: They can be 3mm, 4mm, 5mm, 6mm, and 8mm.
The holes are on the hall side, and there are no holes in the back of the panels.

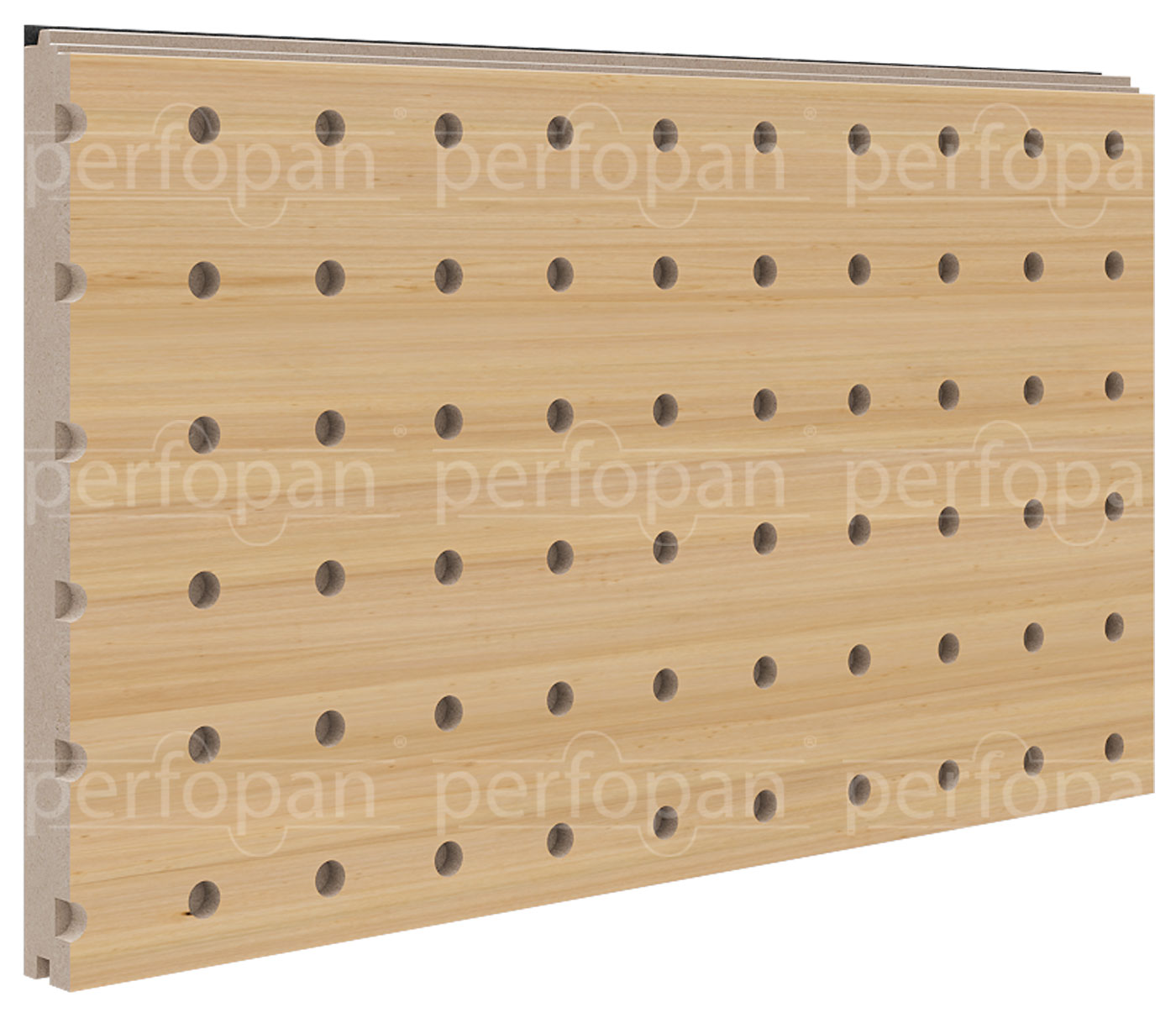

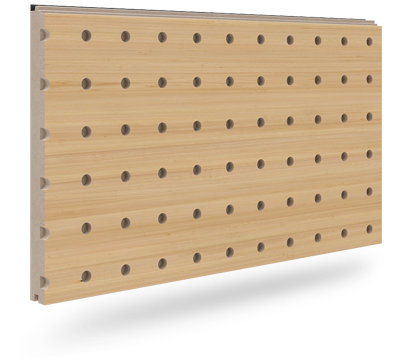

The distance between the holes in this panel is 32mm. The hole depth is 5mm, and the depth can be adjusted as required by acoustic calculations. No operation is done on the back surface of the panel. The distance between holes can also be 8mm, 16mm, 32mm, and 64mm.
Hole Diameters: They can be 3mm, 4mm, 5mm, 6mm, and 8mm.
The holes are on the hall side, and there are no holes in the back of the panels.
