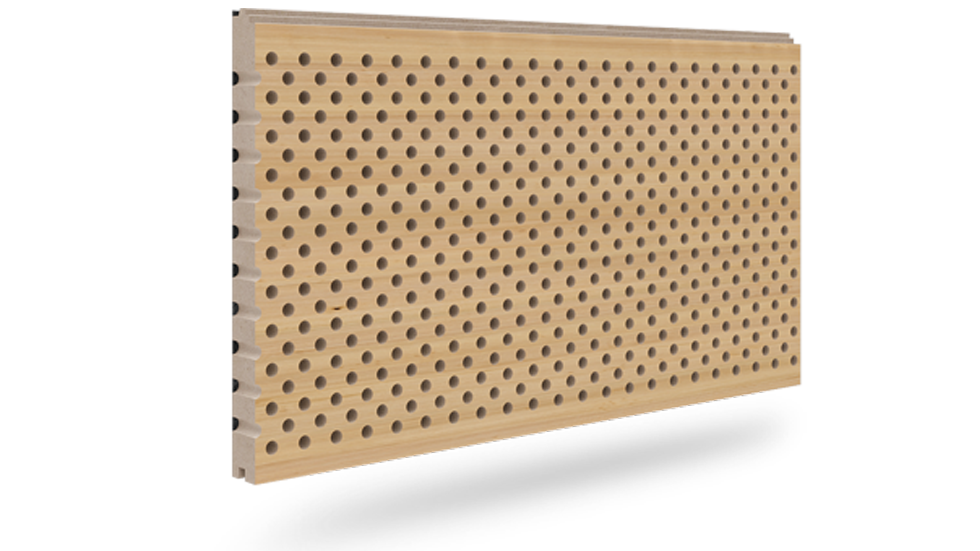

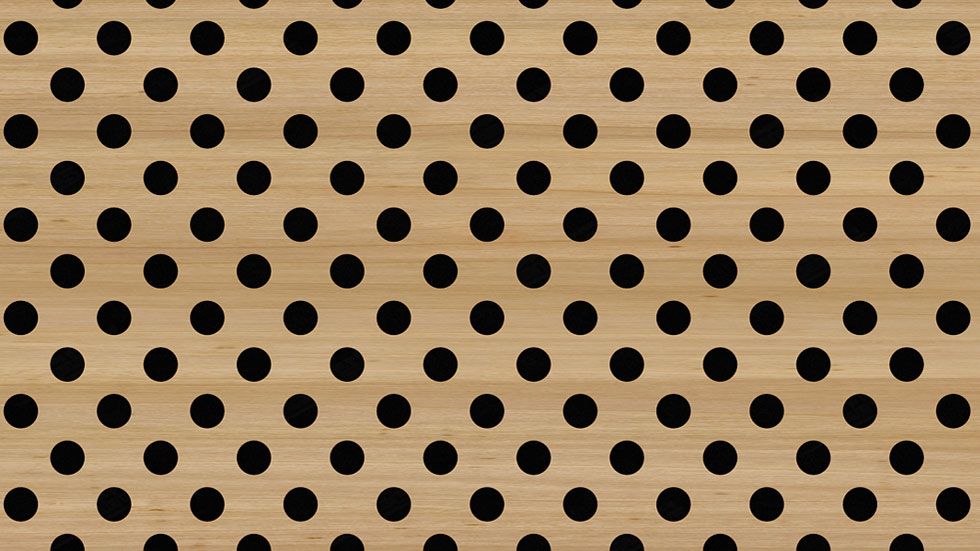

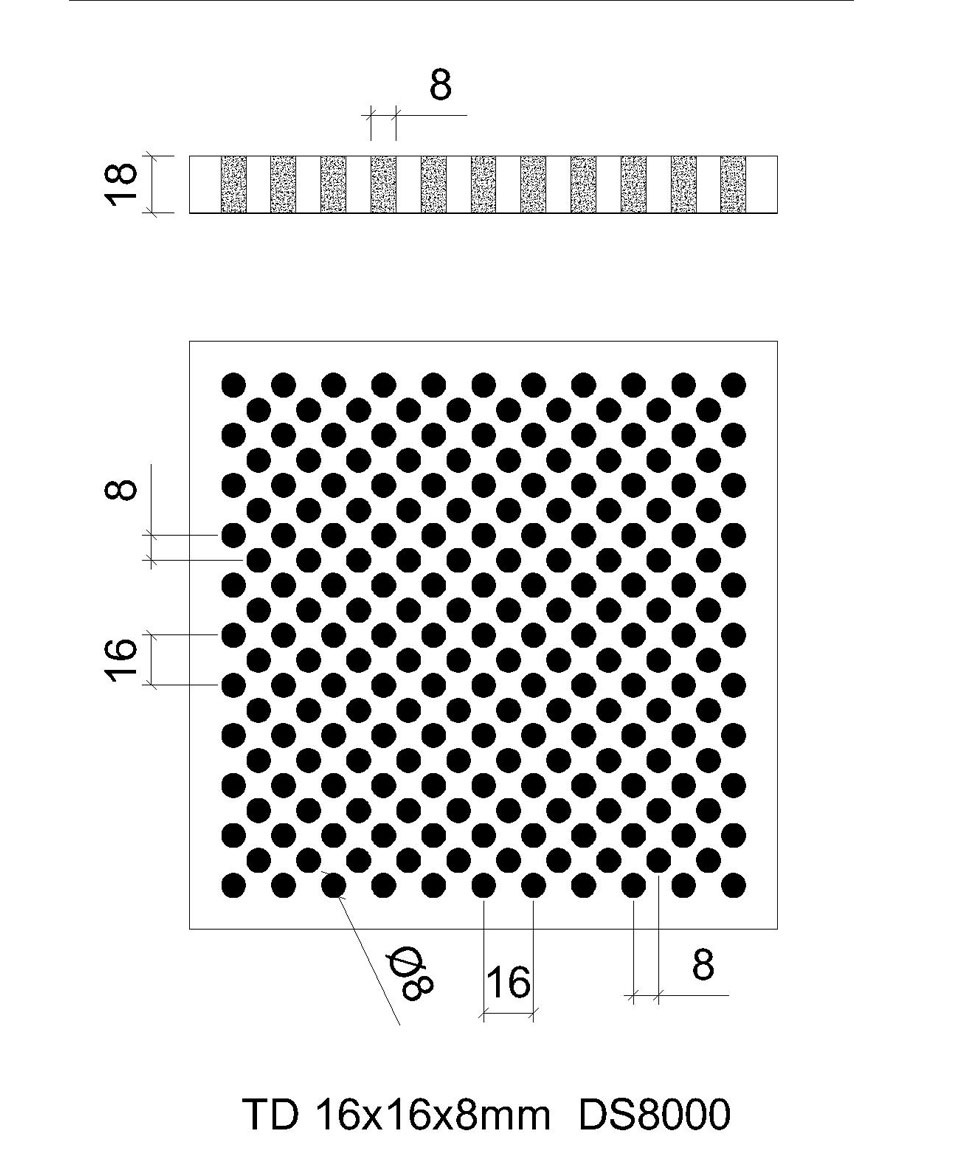

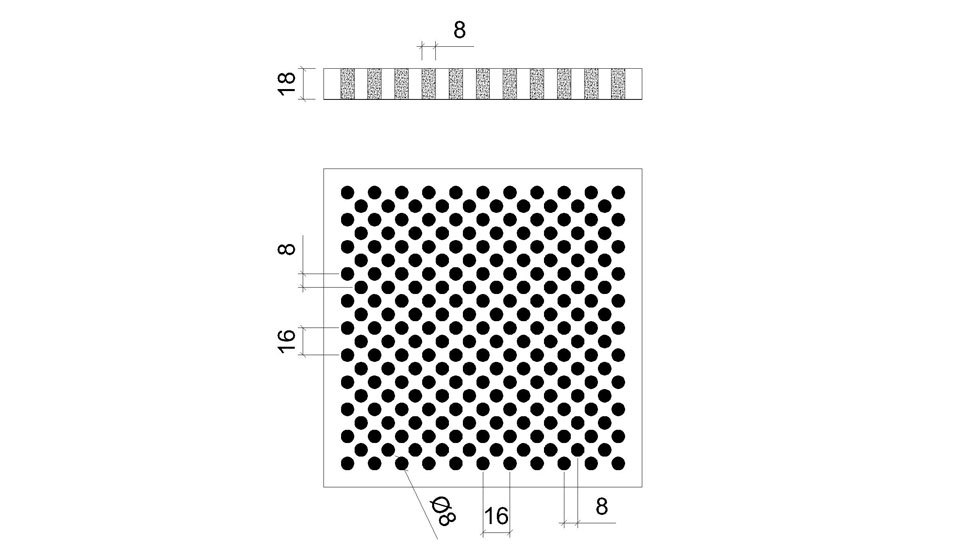

In this panel, there are 8000 full holes per square meter with a diameter of 8mm, which are cross-drilled at 16mm x 8mm intervals.
Perforation Ratio: %23
Frequency Type: It provides high acoustic absorption in medium and high frequency sounds.
MDF MELAMINE WOOD PATTERNS
Acacia
Maple
Yenice Oak
Beech
Africa Walnut
Bamboo
Cherry
Pear
Pesero
Olive
Teak
Italian Walnut
Florida
Dark Cherry
Anthracite Oak
Metallic Walnut
Mahogany
Wenge
MDF MELAMINE SOLID COLORS
Corpus White
Pearl
Light Grey
Ash Grey
Capucino
Lilac
Pastel Green
Sugar Pink
Dark Yellow
Orange
Violet
Blue
Red
Merlo
Nigra
Copper
Navy Blue
Black
HPL SURFACE COATINGS
Asia Chesnut
Marmara Maple
Alba
Grey indian Shesham
Twilight Oak
Como
Victoria
Mustard Bubinga
Anigre
4234
Kalungi
Vanilla Blues
Grey Pine
Smoke Pine
Nigra
Olive Butterfly
NATURAL VENERS
Beech
Maple
Maple-2
Aniegre
Cherry
Oak
Oak-2
Oak Wide
Rift Cut
İroko
Beech-2
Crown Cherry
Zebrano
Afrormosia
Mahogany
Sapelli
Santos Polisander
Ceviz
Teak
Wenge
DANTELA VENEERS
Oak Limy
Crown Maple
Oak
Bamboo
Oak Narrow
Crown Oak
Aniegre
Beyaz Kuşgözü
Teak
Gri
Rift Cut Walnut
Hareli Ceviz
Palisander Crown
Nut Burl
Pelesenk Mor
Wenge Crown
Wenge
Black Burl
LACQUERED SURFACES
White
Light Grey
Fog Grey
Lime Green
Yellow
Orange
Dark Orange
Red
Ocean Blue
Blue
Green
Burgundy
Chocolate
Dark Grey
Black
Fire resistant MDF panels can be supplied upon request. Melamine, natural wood, laminate coating and lacquer paint can be applied on the panels. Depending on the demand, extra fire retardant polish can be applied on our natural coated panels.
The plates we use in production have been tested and certified according to Euro Class, EN 13501-1 burning categories. B-s2, d0 MDF boards are used in your projects that require fire resistance.
| Types Of Boards | Fire Class EN Europe |
Fire Class DIN German |
Test Methods |
Melamine | HPL Laminate | Wood Veneered |
Lacquered |
|---|---|---|---|---|---|---|---|
| B MDF | B-s2,d0 | B1 | EN 13501-1 | + | + | + | + |
| B Particle Board | B-s2,d0 | B2 | EN 13501-1 | - | + | + | - |
The fabricated sheet size of the fire resistant MDF or chipboard panels we use is 2100mm x 2800mm.
| Main Combustion Class Values | Smoke Generation Sub-Class Values | Flame Droplets Sub-Class Values |
|---|---|---|
| A1 Non Blazing Substance, Never Burns A2 Non Blazing Substance, Extremely Limited Combustive B Diffucult Flaming C Contributes Limitedly To Imflammation D Contributes For The Spread Of Flames E Contributes Mainly To Inflammation F Easy Flaming |
s1 Extremely Limited Smoke Generation s2 Medium Degree Smoke Generation s3 High Degree Smoke Generation |
d0 No Flame Droplets and Particles Exist d1 Flame Droplets and Particles Die Less Than 10 Seconds d2 Flame Droplets and Particles Exist |
You can request the international test certificates of our fire resistant panels and contact our company to get more details and information.
Please inform us of your fire resistant product criteria at the order stage.
Pano görüntüsünde delikli paneller kolaylıkla duvara asılabilmektedir. Panellerin delikleri özel olarak yarım delik açılarak montaj için hazırlanmaktadır. Delik çaplarına özel vidalar kullanılmaktadır. Duvar, ahsap ve metal yüzeyler için vida seçenekleri mevcuttur.
You can find more detailed installation information on the "INSTALLATION SYSTEMS" menu on our page
